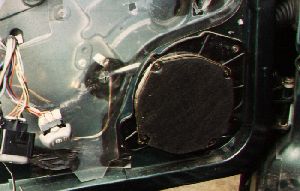

15K thumbnail Shown here is the factory 6 1/2 speaker before removal.

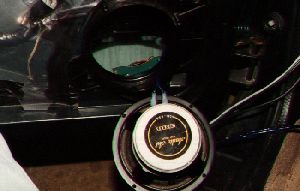

13K thumbnail Shown here is a view of the Audio Art 6 1/2 midbass speaker before bolting it into place. Blade terminals were used to terminate the speaker wires which were routed through the factory wire boot between the door and the side of the vehicle.

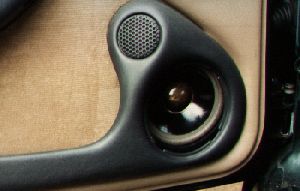

12K thumbnail Shown here is a view of the Audio Art 6 1/2 midbass speaker in place with the door panel reinstalled.
10K thumbnail Shown here is the factory grills over the Audio Art midbass speaker after it has been covered in black grill cloth to match other custom grills made for the waveguides and subwoofers.

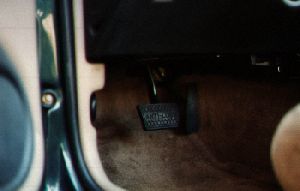

9K thumbnail Shown here is the area under the dashoard before the installation of the USD D-2 waveguides.

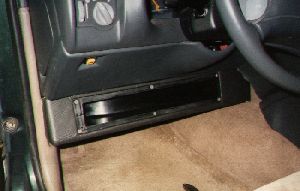

12K thumbnail Shown here is the area under the dashoard with the fabricated mount for the waveguides in place for a test fit. 1/2 inch MDF was used to construct the mount.
12K thumbnail Shown here is a view of the waveguide installed in the mount after vinyl covering was added.

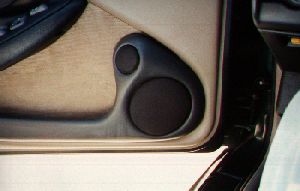

11K thumbnail Shown here is a view of the grills on the door and waveguide.
