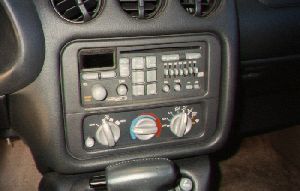

| Shown here is the factory CD player prior to removal.
|

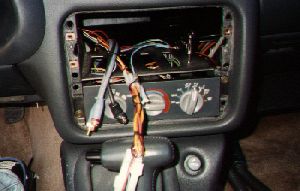

| Shown here is the Clarion 9175L wireing harnes, Clarion DPH7300
DIN cable, and RCA cables after install. Power for the 9175L is
tapped from the factory CD player harness. The unit is protected
by fuses inline by the harness as well as the factory fuse panel.
Wireties were used to avoid stray wire pinching, and butt connectors
were used to patch power and ground wires into factory wires.
|

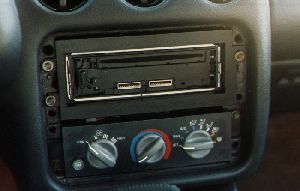

| Shown here is the Clarion headunit installed before adding the
trim rings and faceplate.
|
| Shown here is the Clarion 9175L installed and powered.
|

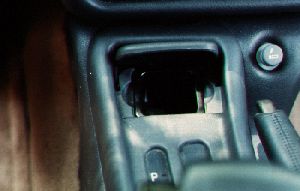

| Shown here is the ash tray before installing the bass processor control knob.
|

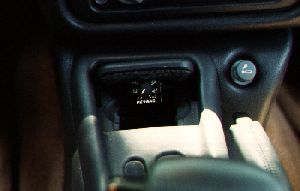

| Shown here is the bass processor control knob mounted to a piece of
1/4 carpeted wood which was then attached to the inside of the ash
tray lid.
|

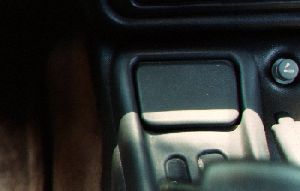

| Shown here is the ash tray in the closed position which adds a small
degree of stealth to the install.
|
|
