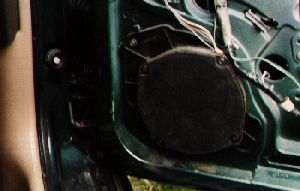

| Shown here is the factory 6 1/2 speaker before removal.
|

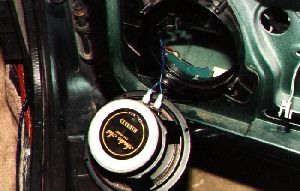

| Shown here is a view of the Audio Art 6 1/2 midbass speaker before
bolting it into place. Blade terminals were used to terminate the
speaker wires which were routed through the factory wire boot
between the door and the side of the vehicle.
|
| Shown here is a view of the Audio Art 6 1/2 midbass speaker in place
with the door panel reinstalled.
|

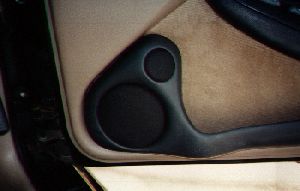

| Shown here is the factory grills over the Audio Art midbass speaker
after it has been covered in black grill cloth to match other custom
grills made for the waveguides and subwoofers.
|
| Shown here is the area under the dashoard before the installation of
the USD D-2 waveguides.
|

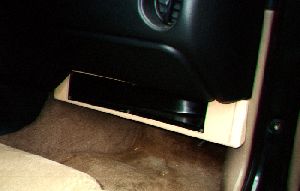

| Shown here is the area under the dashoard with the fabricated mount
for the waveguides in place for a test fit. 1/2 inch MDF was used to
construct the mount.
|

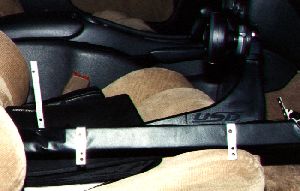

| Shown here is a view of the mounting hardware fabricated to hold
the guide in place. A similar mounting setup was used for the
drivers side.
|

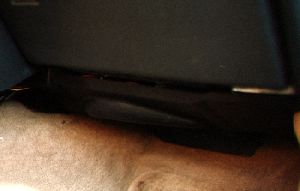

| Shown here is a view of the guide in place with grill installed.
|
|
