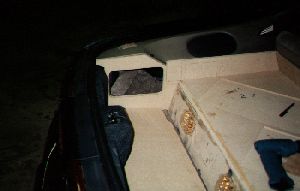

| Shown here is the area in the hatch where the Clarion DPH7300 DSP/EQ,
Petras Q-1 Bass Processor and Stinger Accumatch SAM-1200 will be mounted.
|

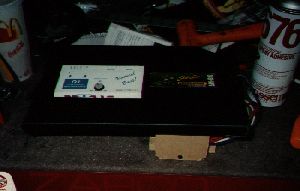

| Shown here is the MDF mounting board for the bass processor and
accumatch after being vinyl covered. The board will be fastened
to the back of the mounting panel leaving the front of the bass
processor and accumatch visible.
|

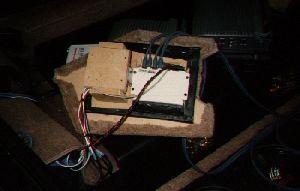

| Shown here is a view of the wiring running to and from the bass
processor and Accumatch.
|

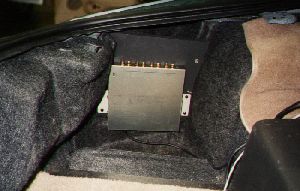

| Shown here is a view of the mounting of the Clarion DPH7300 DSP/EQ
module. The module is mounted to a piece of MDF which is secured
to the vehicle.
|

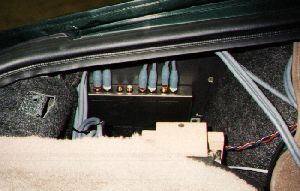

| Shown here is the RCA wires connected to the Clarion DPH7300 DSP/EQ.
|
| Shown here is a view of the finished bass processor/accumatch mount.
A cover was made to match the surrounding carpet trim.
|
|
