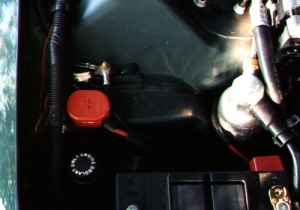

28K JPG image Shown here is the original battery prior to upgrading to the optima and installing the fuse block and additional ground.

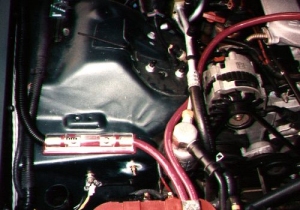

41K JPG image Shown here is the main fuse block mounted, 1/0 charging lead prior to connection and additional grounding point to the chasis.
16K JPG image Shown here is a view of the 1/4" plexiglass cover which covers the battery and fuse area.

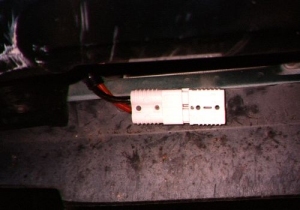

25K JPG image Shown here is a view of the charging/jumping port under the front bumper of the car. Custom jumpercables and a custom charging leab were made out of 4 guage wire.

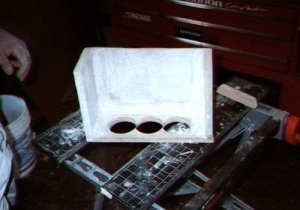

30K JPG image Shown here is the beginning of the cap bank mounting. 3/4 inch MDF and fiberglass were used to make the frame.

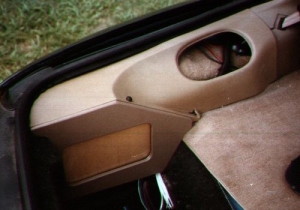

29K JPG image Shown here is the panel behind which the cap bank will be mounted in.

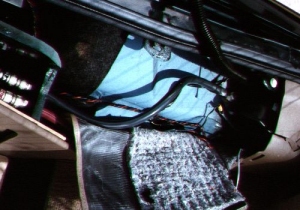

42K JPG image Shown here is the grounding point for the caps. 1/0 cable was used.

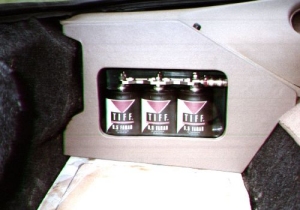

30K JPG image Shown here is the cap bank in place after being painted to match the car. Plexiglass is used to protect the terminals, neon is used for highlight.
