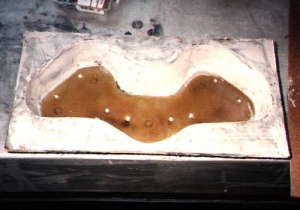

36K JPG image Shown here is the beginning of the custom fiberglass tub that will hold the power distribution and fuse blocks.

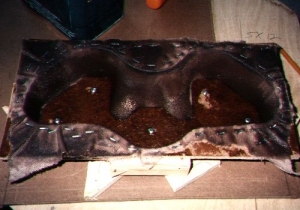

32K JPG image Shown here is the tub, before being painted to match the car.
26K JPG image Shown here is a view of the power distribution tub mounted in the amprack. 1/0 runs into the center distribution block, 1/0 runs out the other side of the distribution block to the cap bank, 4 guage feeds the fuse blocks, 8 guage feeds all amps and accessories.
