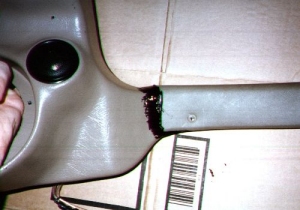

32K JPG image Shown here is how the q-form panel was joined to the remains of the factory kickpanel with epoxy.

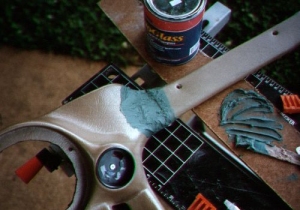

37K JPG image Shown here is the process of using fiberglass to recontour the joint before coating with spray texture and dying the panel back to factory color.

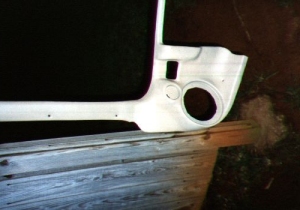

25K JPG image Shown here is a view of the kickpanel after being dyed to match factory original color.
32K JPG image Shown here is a view of the altered kickpanels mounted in the car.

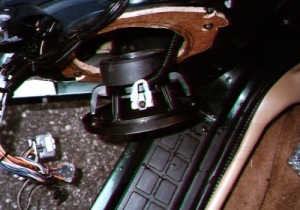

39K JPG image Shown here is the Diamond Audio 6.5" before mounting in the drivers side door to show proper termination of wires. A custom mounting baffle was made to hold the speaker.

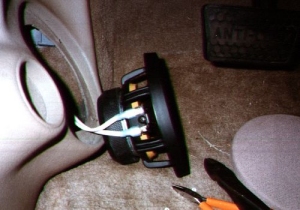

35K JPG image Shown here is the Diamond Audio 5.25" before mounting in the drivers side kickpanel to show proper termination of wires.

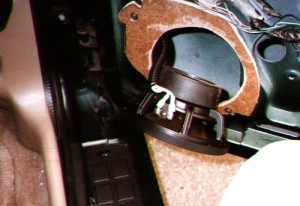

34K JPG image Shown here is the Diamond Audio 6.5" before mounting in the passengers side door to show proper termination of wires. A custom mounting baffle was made to hold the speaker.

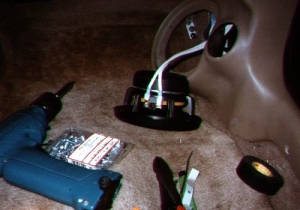

32K JPG image Shown here is the Diamond Audio 5.25" before mounting in the passengers side kickpanel to show proper termination of wires.
